Fish feed machine   >  Single screw fish feed machine  >

  • Aquatic floating fish food extruder machine
  • Aquatic floating fish food extruder machine
  • Aquatic floating fish food extruder machine
  • Aquatic floating fish food extruder machine
  • Aquatic floating fish food extruder machine
  • Aquatic floating fish food extruder machine
Aquatic floating fish food extruder machine Aquatic floating fish food extruder machine Aquatic floating fish food extruder machine Aquatic floating fish food extruder machine Aquatic floating fish food extruder machine Aquatic floating fish food extruder machine

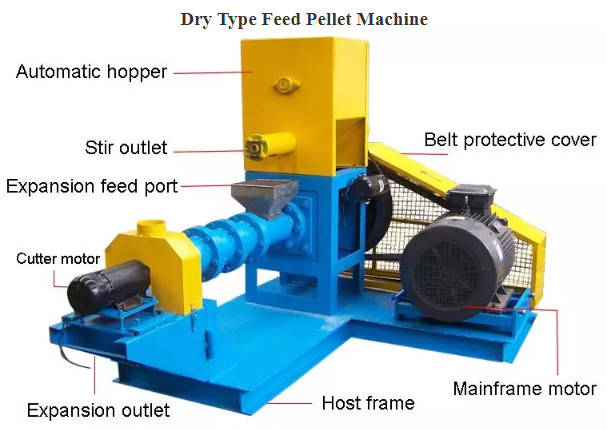

Aquatic floating fish food extruder machine

  • 1.Enlarge and widen the feed inlet, wear-resistant and durable
    2.Pure copper motor, strong power, low noise
    3.Thick and flexible belt, silent transmission, strong adhesion
    4.Variety of feed shape grinding tools are available
    5.Equipped with power control box, easy to operate and safe
    6.Separate variable speed cutting device, feed pellet length can be adjusted
    7.Spiral discharge opening, uniform discharge
    8.Wear-resistant slicing, easy to disassemble
  • INQUIRY

1.Aquatic floating fish food extruder machine Application:

  Fish feed extruder machine is widely used for producing grains into high-grade aquatic feed pellets for fish,catfish,shrimps,crab,dog,cat,chicken,pig,cattle,birds feed etc with different shape.

1.Widely used for producing floating and sinking feed pellets of all kinds of aquatic animal.

2.Different molds can be chosen to make pellets with different diameters and shapes (1-15mm).It can produce different shapes feed for fish, dog, cat etc.
3.High wear resistant degree and long service life.

Aquatic floating fish food extruder machine



Raw materials of Aquatic floating fish food extruder machine:

1.Rice Dust: contain about 10-14% of protein and also contain vitamin B1, B2, B6 and small quantity of enzyme.



2.Mustard Cake: Mix maximum 40% of cake in the fish feed. But don't use dry cake more than 20%. Mustard cake contain 30-32% protein. It also contain a high rate of fat.

Aquatic floating fish food extruder machine

3.Wheat Chaff: contain fiber, control many types of fish diseases.

4.Maize: contain protein, carbohydrate, fat, vitamin A and E.

5.Cotton Seeds: contain about 54% protein. It is a better ingredients for supplementary fish feed.
6.Fish Powder: easily digestible to fish. Fishmeal contain about 55-60% protein.

7.Bone Powder: very necessary for building fish-bone.

8.Innards : very suitable and ideal feed for catfish. It contain 52% protein.

2.Aquatic floating fish food extruder machine Model:

Model

Power

Capacity

Feeding power

Cutting power

FLD40

5.5kw

30-40KG/H

0.4KW

0.4KW

FLD50

11KW

60-80KG/H

0.4KW

0.4KW

FLD60

15KW

120-150KG/H

0.4KW

0.4KW

FLD70

18.5KW

180-250KG/H

0.4KW

0.4KW

FLD80

22KW

300-350KG/H

0.4KW

0.6KW

FLD90

37KW

400-500KG/H

1.1KW

1.5KW

FLD120

55KW

500-600KG/H

1.1KW

1.5KW

3.Aquatic floating fish food extruder machine  How to Work?

 There is no need to heat outside the machine, through the screw extruding of the raw material, heat is produced and gathered during the rotary working process in the airtight environment, and during the high temperature ripening process, the starch and fiber of the raw material become swell. Then under the pressure-tight condition, material will be formed into pellets by shaping mould. At the end, through the high pressure produced by the regular rotating of the screw, after being cut by the forepart cutter which rotates regularly and high-speedily, the finished products will be shrunk and become small average puffed balls in room temperature and pressure.

packing types.jpg

4.Final Pellet:Round Shape and other shapes  Diameter:0.9-15mm by replace the moulds

Aquatic floating fish food extruder machine



Aquatic floating fish food extruder machine

 Our Services-7x24 hour Service

Strongwin Factory Can Provide Turnkey Feed Plant Project

 Consultation Service → Design → Civil Engineering → Manufacturing→ Installation → Training

Customized Solutions 100% Quality Assurance Support Oversea Installation.

 If you are interested in our Floating fish feed pellet machine,Please leave message to us!

Inquiry Now
