Small Floating Fish Feed extruder

Small Floating Fish Feed extruder
1). All fish food equipments are made of stainless steel.
2). The fish food production line fully continuous and automatic.
3). provide basic fish food formula according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the fish feed production line (depending on your require)
INQUIRY

1.How Do You Make Floating Fish Feed Pellet ?
The fish feed pellets production line was designed to make floating fish feed, pet feed,and other animal feed, it was taking meat meal, fish meal, bone meal, corn meal, soybean meal, grain flour etc. as the mainly raw materials. By changing fish feed recipe, temperature, molds and others, can produces fish pellet food in different shape,color.taste. The feed pellets produced by our fish feed production line have high protein content,can make fish growth fast&healthy, with good nutrient absorption, lower waste of feed, less damage to water quality.By changing the formula and operation process, it can produce floating fish feed and sinking fish feed.

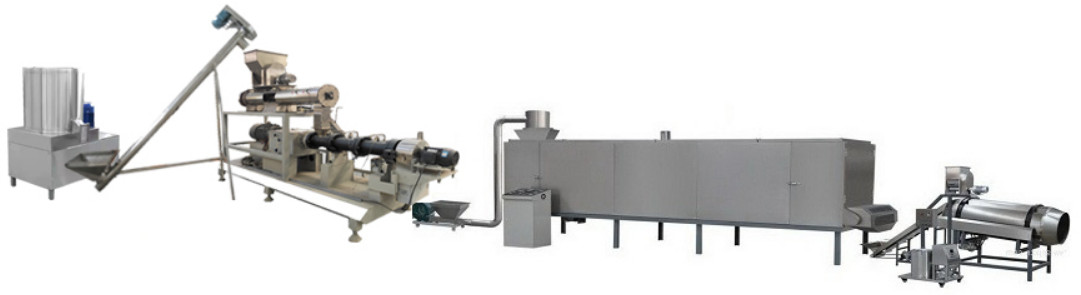

2. Flow chart of Floating fish feed extruder machine:

Mixer-Screw Conveyor-Doble Screw Extruder-Air Conbeyor-Dryer-Hoister-Flavoring Machine-Cooling Machine

1	Crushing	Crusher/Hammer mill	To crush the raw materials such as grains into flour/powder
2	Mixing	Mixer	To mix different flour materials together and evenly
3	Extruding and pelleting	Fish Feed Extruder	To make fish feed pellet, the material is processed by high temperature and pressure and pelletized into round pellets, suitable for feeding fish, we could produce both floating fish feed and sinking fish feed.
4	Drying	Dryer	To dry the fish feed pellets coming from the extruder
5	Cooling	Contraflow Cooler	To cool the fish feed pellets, the fish feed pellets could be stored for a long time.
6	Flavoring	Rotary flavoring machine	To seasoning the fish feed, spray oil and other liquid additives on the surface of fish feed pellets, make the feed more delicious.
7	Packaging	Automatic Packaging machine	To pack fish feed pellets into bags, easy for store, transportation and for sale in the market

3. Fish food extruder machine Parameter:

Model Parameter	Installed Power(kw)	Power Consumption(kw)	Capacity(kg/h)	Dimension(m)
SLG65	74	52	120-180	171.22.2
SLG70	95	70	200-300	201.52.2
SLG75	110	82	250-400	261.52.2
SLG85	139	104	400-800	283.54.3
SLG90	132	75	800-1200	283.54.3
SLG100	165	90	1500-2000	353.54.3
SLG120	469	380	2000-2500	452022
SLG140	712	570	3000-3500	502025
